NUVE Stirred Water Bath

Temperature range: Ambient temperature + 5°C / 99,9°C.
Powerful circulation by means of the reliable pump replaced outside of the tank for excellent temperature homogeneity, ± 0,1°C @ 37°C, and stability , ± 0,01°C @ 37°C.
Password protected menu to secure the operation.
Data recording on memory stick by means of USB port up to 125 days.
Programmable delayed start function.

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

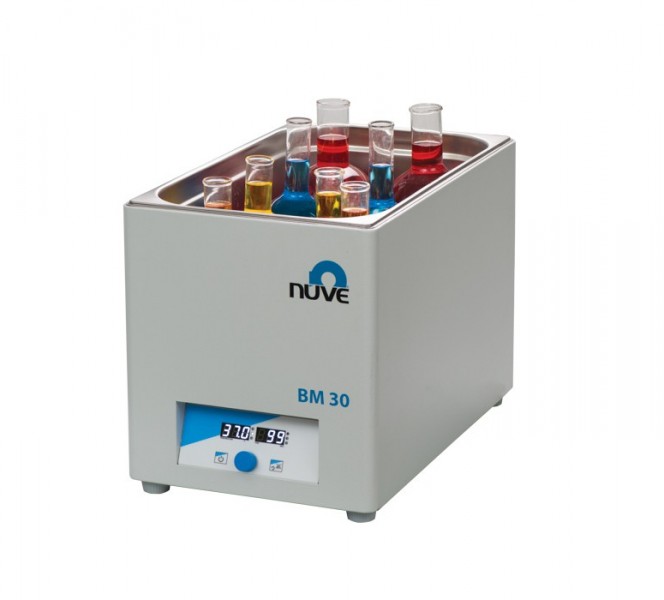

Very accurate temperature control, N-Prime™ programmable microprocessor system and efficient insulation ensure that BM 30 stirred water bath offers excellent performance.

The large, bright displays and functional LEDs are visible at a distance and the control panel is set at an angle for convenient data input plus out of the way of spillages.

A range of accessories includes transparent and steel lids, tube and flask racks for maximum storage.

Useful volume: 17 liters.
Reliable and accurate N-Prime™ programmable PID microprocessor control system.
User friendly control panel including large bright LED displays for temperature and time.
Easy programming with one button, just turn and push.
Programmable alarm limits.
Safety thermostat to prevent running without water and audible and visual alarms against overheating.
Seamless corrosion resistant stainless steel tank for a longer life.
Minimized risk of contamination by the rounded corners and smooth surfaces on the tank.
Silicon sheet heaters surrounding the tank from three sides for uniform heating.
Triple insulation consisting of glass wool, aluminum layer and air gap for high efficiency.
Angled front panel to protect the controller from accidental water spillage.
Efficient tank usage as there is no obstruction in the tank such as circulation pump or heater.
Convenient drain for discharging the liquid in the tank quickly.
Footprint almost equal to the tank dimensions to save valuable bench space.
Various type of racks and shelves for tubes and flasks.

Specifications

Technical Specifications	Model No. BM 30
Tank Volume, liters	30
Useful Volume, liters	17
Circulation Pump Capacity	16 lt/min
Temperature Range	Ambient Temperature +5°C / 99,9°C
Temperature Sensor	Fe-Const
Control System	N-Prime™ Programmable PID Microprocessor
Displays	LED Displays for temperature and time
Temperature Setting and Reading Sensitivity	0,1°C
Temperature variation @37°C	± 0,1°C*
Temperature fluctuation @37°C	± 0,01°C*
Programmable Alarm Limits	± 0,5°C / 5°C
Timer	1 min - 99,9 hours + Hold Position
Delayed Start Timer	1 min - 99,9 hours
Selectable Recording Frequency on Memory Stick	10 or 30 second, 1,5,30 or 60 min
Inner Surface Structure	Stainless Steel
External Surface Structure	Electrostatic Powder Coated Stainless Steel Sheet
Power Supply	1.550 W
Power Consumption	230 V / 50 Hz
Internal Dimension (WxDxH) mm	300x503x195
External Dimension (WxDxH) mm	332x540x375
Packing Dimensions (WxDxH) mm	680x420x650
Net/Packed Weight Kg.	15 / 18
