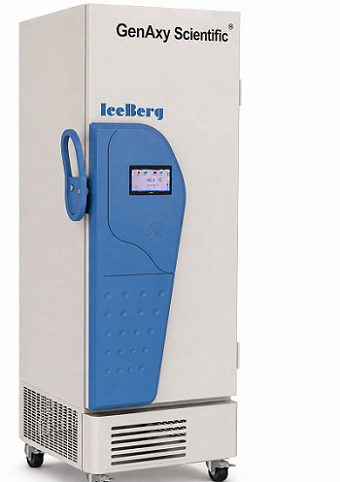

GENAXY -86 Ultra Low Temp Freezers

KEEP IT CHILL, ORGANIZED & SAFE WITH IceBerg.

  • Available in 100L to 730L volume capacities.
  • Microprocessor control, Large LED display inner temperature clearly, and with easy view.
  • The inner temperature can be adjustable at the range of -40℃ to -86℃, with an increment of 0.1℃.
  • Lock and password for protection to prevent arbitrary adjustment of operating parameters.
  • Optional 7"color LCD touch screen display system.

Overview

These specialized freezing units, capable of reaching temperatures as low as -86°c (-123°f), play a critical role in preserving a wide range of biological and medical samples. they are critical choice when it comes to preservation of biological samples, vaccine storage, bio-banking and biomedical studies, drug discovery , cryopreservation of stem cells,genomic research and sequencing, clinical research, protection against sample contamination & long-term data reproducibility.

  • Accommodation capacity for up to 50,000 tubes of (1.5 mL) for your daily sample storage, combined with excellent pulldown and recovery times.
  • CFC-Free complete polyurethane foaming insulation, hydrocarbon refrigerant.
  • Different racks are available for organized freezers.

Ergonomic Design



  • Safety door lock, preventing unauthorized access;

  • Wide voltage design from 192V to 242V;

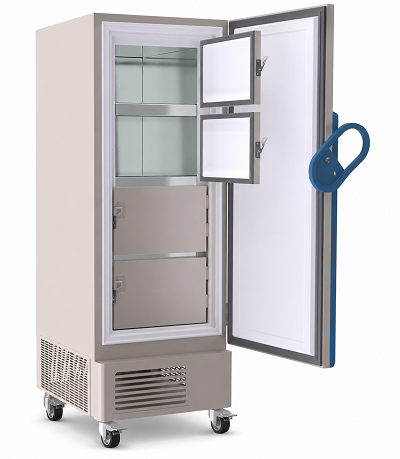

  • Double inner doors to reduce the loss of cold air after opening the door;

  • Suitable for 2" and 3" international standard freezer boxes.

  • Pressure-balanced port design, easy to open the door.

  • Heavy type caster and locking with adjustable screw, easy to move and fix;

  • Ultra-simple condenser filters design, convenient for maintenance and washing.

Specifications



Model  ULT 100L ULT 280L  ULT 360L  ULT 480L  ULT 590L  ULT 730L
Cabinet Type  Vertical
Climate Class N
Cooling Type  Direct cooling
Defrost Mode  Manual
Refrigerant Hydrocarbon,Mixing
Cooling Performance (℃) Minus 80
Temperature Range(℃) Minus 40 to -86
Exterior Material  Galvanized steel powder coating
Interior Material  Galvanized steel powder coating
Insulation Material  PUF+VIP
Capacity(L)  100L 280L  360L  480L  590L  730L
Interior Dimensions(W*D*H)   460x470x1310mm 460x600x1310mm 740x600x1310 740x730x1310mm
Exterior Dimensions(W*D*H)   640x692X1970mm 640x692X1970mm 920x822X1920 920x952X1970mm
Thickness of Cabinet Foamed Layer 90mm
Thickness of Door  90mm
Capacity for 2 inch boxes    180 240 320 400 480
Inner door  2
Power Supply(V/Hz)  220V/50Hz



Video

Variations

Image Product Name Catalog No. Product Description Pack Size Quantity Action
GENAXY -86 Ultra Low Temp Freezers ULT 100L

100L GENAXY Ultralow temp Deep Freezer (-86 Degrees)

GENAXY -86 Ultra Low Temp Freezers ULT 280L

280L GENAXY Ultralow temp Deep Freezer (-86 Degrees)
