GENAXY-3-IN-One

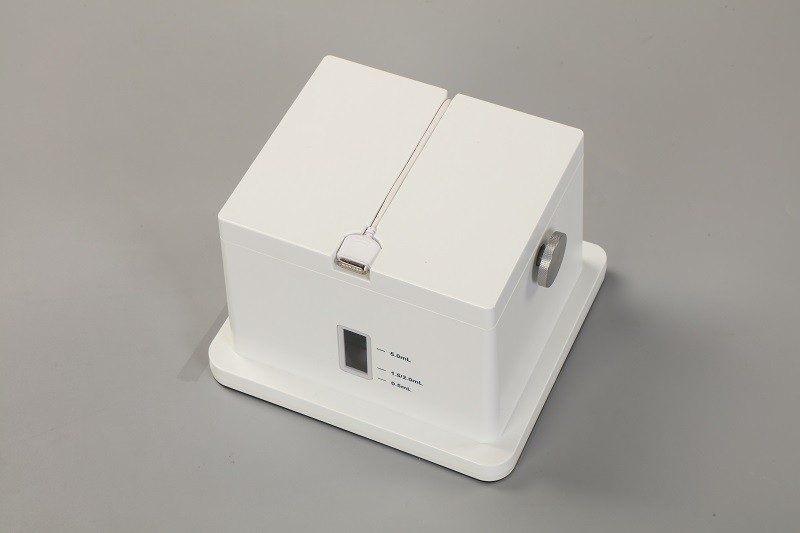

Unique design with Heating lid provides improved temp homogeneity and optimal sample reaction conditions to produce accurate results.
GENAXY-3-IN-One provides Heating, Cooling and Mixing in one instrument.
Orbital Mixing with a diameter of 3mm and speed range of 200- 3000Rpm.
Variety of blocks are available to offer flexibility of using containers of different capacities .
Thermal cycler design of heated lid to prevent condensation and provide efficient and reliable results.
Adustable Hight of heated lid makes it unique to be used with different capacity blocks.

Intuitive and easy to operate.
4.3-inch LCD display & touch screen panel.
Availability of power failure self-recovery functions.
Automatically resume of operation as per the set parameters after power failure recovery.
Various standard sample blocks are available with automatic block recognition facility.
The instrument is equipped with a mobile phone APP for real-time monitoring of instrument status.

Various blocks are available.
New & ergonomic design provides easy block loading and unloading, blocks can be replaced without any tools.

Various heating methods, can be choosen according to the experimental needs.
Programable shaking method, can be set according to requirements,both forward and reverse rotation can be set.
Program settings, multiple programs are connected to each other, no need to set repeatedly.
GENAXY-3-IN-One has low-temperature storage function when the program is completed, the samples can be automatically stored in low-temperature.

Microprocessor control, good temperature control linearity, accurate shaking speed, minor fluctuations.
maintenance-free DC brushless motor drive with long service life.
Built-in over-temperature protection makes it more reliable to use.

Full power heating can be selected at the highest 3°C/min heating to prevent the experiment from failing due to uneven temperature changes.
Optional thermal lid to effectively improve the temperature uniformity in the test tube.

Model	GENAXY-3-Minus-One	GENAXY-3-IN-One
Shaking speed	200-3000rpm	200~3000rpm
Shaking amplitude	3mm	3mm
Temperature control range	RT +5°C~105°C	Ambient - 20°C ~105°C
Temperature uniformity	0.5°C	0.5°C
Temperature control accuracy	±0.5°C(@30-50°C)	±0.5°C(@30-50°C)
Display	4.3 inch touch screen (capacitive type)	4.3 inch touch screen (capacitive type)
Display accuracy	±0.1°C	±0.1°C
Timer range	1min~99h59min	1min~99h59min
Heating time (25-100°C)	15min (RT 20°C 30°C)	15min (RT 20°C 30°C)
Heating rate gear	Max; 3°C/min; 2°C/min;1°C/min; 0.1°C/min	Max; 3°C/min; 2°C/min;1°C/min; 0.1/min
Refrigeration time(detected at 25°C ambient temperature)	——	°C20min (Ambient temperature 20°C: 20°C 0°C)
		20min(Ambient temperature 25°C:RT°C 4°C)
		20min (Ambient temperature 30°C:RT 10°C
Cooling rate gear	___	Max;1°C/min;0.5°C/min;0.1°C/min
number of Programs	50	50
External port for data transfer	USB & Printer	USB & Printer
Dimension(mm)	318x154x220	318x154×220
Weight	10kg	10kg

Image	Product Name	Catalog No.	Product Description	Pack Size	Quantity	Action
	GENAXY-3-IN-One Thermo Shaking incubator	GENAXY-3-IN-One	GENAXY-3-IN-One thermo shaking Incubator Heating, Cooling and Mixing in one instrument.
	GENAXY-3-Minus-One Thermo Shaking incubator	GENAXY-3-Minus-One	GENAXY-3-Minus-One thermo shaking Incubator with Heating and Mixing.

Cat Nos.	Description	Max. Temp	Max. Speed	Qty/Pack
GEN-81020-A	24 x 0.5mL tubes	105°C	200~2000rpm	each
GEN-81020-B	24 x 1.5 mL tubes	105°C	200~3000rpm	each
GEN-81020-C	24 x 2.0 mL tubes	105°C	200~2000rpm	each
GEN-81020-D	15x0.5mL+ 20X1.5mL tubes	105°C	200~2000rpm	each
GEN-81020-E	8 x5mL tubes	100°C	200~1200rpm	each
GEN-81020-F	24X12 mm tubes	105°C	200~2000rpm	each
GEN-81020-G	24 x 1.5ml/2.0ml Cryopreservation tubes	105°C	200~2000rpm	each
GEN-81020-H	8x15mL tubes (Both flat bottom and cone bottom can be used)	100°C	200~1000rpm	each
GEN-81020-I	4x50mL tubes (Both flat bottom and cone bottom can be used)	100°C	200~1000rpm	each
GEN-81020-J	Block lid	—	—	each
GEN-81020-K	96x0.2mL microplate	105°C	200~3000rpm	each
GEN-81020-L	96x2mL deepwell plate	105°C	200~1500rpm	each
GEN-81020-M	96x0.2mL PCR plate	105°C	200~2000rpm	each

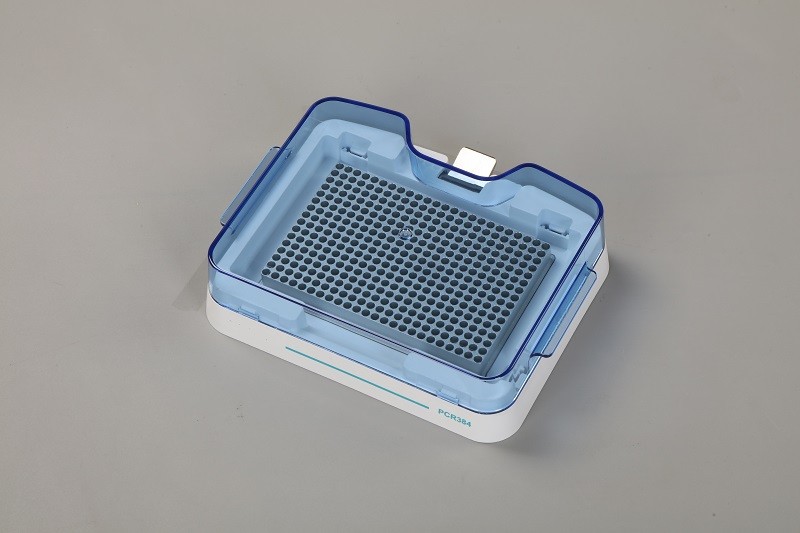

GEN-81020-N	384 PCR plate	105°C	200~3000rpm	each
GEN-81020-O	96/500 L deepwell plate	105°C	200~1500rpm	each
GEN-81020-P	96/1000 L deepwell plate	105°C	200~1500rpm	each
GEN-81020-Q	Heating lid	—	—	each
