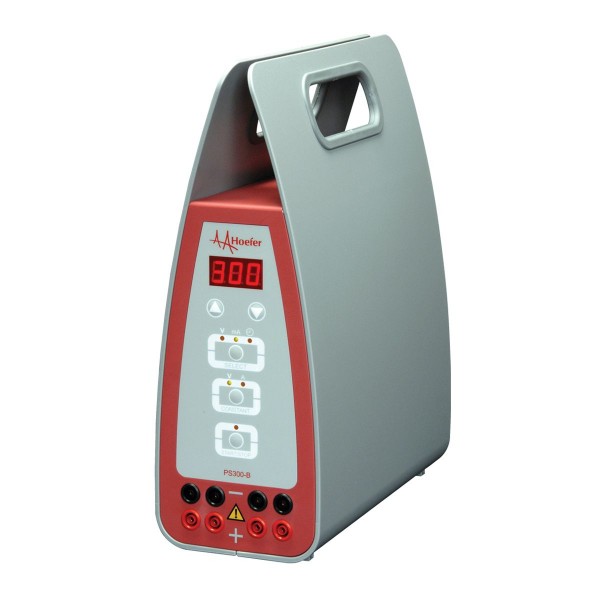

PS300B 300 Volt Power Supply

Constant voltage or constant current mode with automatic crossover
10 to 300 V, 4 to 500 mA, 90 W
Four sets of 4 mm output jacks
Ideal choice for most electrophoresis techniques
Continuous runs or 999 minute timer
Automatic recovery after power failure
Open circuit detection
Short circuit protection

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

The PS300B 300 Volt Power Supply is designed for most electrophoresis techniques. The small footprint, large handle, and simple operation makes the PS300B easy to set up and use in your lab. With the large, easy to read LED, simply set the constant parameter, set the timer (if desired), and push start.

Specifications

Voltage	10 to 300 V in 1 V step
Current	4 to 500 mA in 1 mA steps
Maximum Wattage	90 W
Timer	0 to 999 minutes
Output Modes	Constant voltage or current
Output Jacks	4 in parallel, 4 mm
Indoor Use	4 to 40°C
Humidity	80%
Universal Voltage Input	100 to 240 VAC, 50/60 Hz
Unit Dimensions (W x H x D)	12.5 x 33.5 x 28 cm
Weight	2.4 kg
