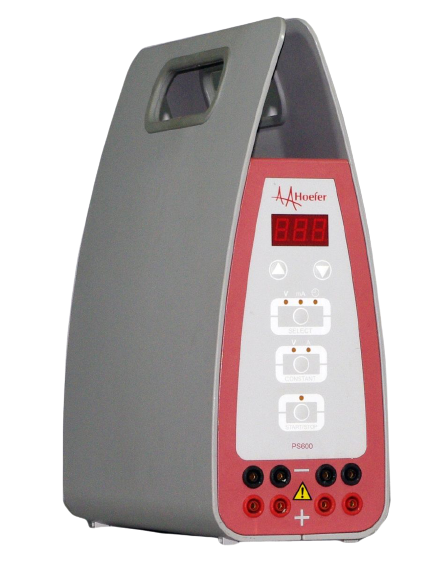

PS600 600 Volt Power Supply

Constant voltage or constant current mode with automatic crossover
5 to 600 V, 3 to 750 mA, 150 W
Four sets of 4 mm output jacks
Ideal choice for most electrophoresis techniques
Continuous runs or 999 minute timer
Automatic recovery after power failure
Open circuit detection
Short circuit protection

Overview
Specifications
Video
Documents
Variations
Accessories

Overview

The midrange PS600 600 V Power Supply is designed for electrophoresis and blotting techniques including large format and high throughput applications. The small footprint, large handle, and simple operation make the PS600 easy to set up and use in your lab. With the large, easy to read LED, simply set the constant parameter, set the timer (if desired), and push start.

Specifications

Voltage	10 to 600 V in 1 V step
Current	4 to 750 mA in 1 mA steps
Maximum Wattage	150 W
Timer	1 to 999 minutes, 1 min increment
Output Modes	Constant voltage or current
Output Jacks	4 pairs in parallel, 4 mm plugs
Indoor Use	4 to 40°C
Humidity	0 to 80%, noncondensing
Universal Voltage Input	100 to 240 VAC, 50/60 Hz
Unit Dimensions (W x H x D)	12.5 x 33.5 x 28 cm
Weight	2.4 kg
